The Ultimate Twin 20 inch Big Blue / Jumbo Housing

The Ultimate Twin 20 inch Big Blue / Jumbo Housing
Twin 20 inch Heavy Duty WaterMark Approved Alpine Pure Big Blue / Jumbo filter housings with 1 inch (25mm) Ports.

* These Heavy Duty Alpine Pure Housings are for those of you that want the best water flow and maximum dirt/chlorine/heavy metals holding capacity available.

* Commonly used for whole house systems.

* Used in both Rural and City Properties

* 100% Polypropylene Housings and heads with WaterMark Certificate of Conformity, made with materials complying with NSF/ANSI Standard 42.

* 5 Year Structural Warranty.

* Center Watertight O-Ring.

* Max Pressure: 90 psi.

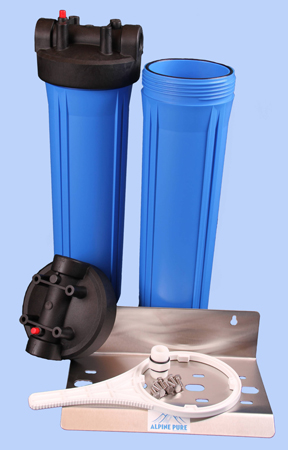

Includes:
* 2 x 20 inch Big Blue / Jumbo Housing
* Stainless Steel bracket.
* Stainless steel screws.
* Housing Removal Spanner.

All 20 inch X 4-½ inch Big or Jumbo Cartridges will fit these housings.

Choose your port option - 1 inch (25mm) or 3/4 inch (20mm)

***Please Note: This Twin Filter Housing does not include filter cartridges. Listed below are some filter cartridge options.
RRP:
AU$ 460.00
Price:
AU$ 299.00 including GST
EA
TWFH 20 BIG 1
Options:
[{"colour":"","code":"TWFH 20 BIG 1","size":"","price":299,"qty":9999,"pid":5661832,"style":"25mm BSP Port Option","disabled":false,"imgsrc":"/images/100287/TW20BB-1.JPG","title":"The Ultimate Twin 20 inch Big Blue / Jumbo Housing"},{"colour":"","code":"TWFH 20 BIG 34","size":"","price":299,"qty":9999,"pid":5661833,"style":"20mm BSP Port Option","disabled":false,"imgsrc":"/images/100287/TW20BB-1.JPG","title":"The Ultimate Twin 20 inch Big Blue / Jumbo Housing"}]
Purchase Qty:


Do Not allow Filter Housing to Freeze.

Always Use a Pressure Limiting Valve if Pressure over 90 psi.

Always Use a Water Hammer Arrestor if Water Hammer is Present.

Do Not Overtighten.

** Some Possible Filter Cartridge Options**

* In a rural situation for sediment control we recommend the 20" x 4-¼" Big Gradient Density 20 micron Polyspun followed by a 20" x 4-¼" Big Gradient Density 1 micron Polyspun in the final housing.

* If Taste or Odor is an issue then the 20" x 4-¼" Big Gradient Density 1 micron Polyspun goes first followed by a 20" X 4-¼" Matrikx CTO/2®, 5 micron Carbon Block or a  20" X 4-¼" CTO 10 micron Carbon Block or a 20" x 4-¼" GAC Cartridge depending on your budget or preference.

* For Chlorinated town water a 20" x 4-¼" Big Gradient Density 1 micron Polyspun goes first followed by the 20" X 4-¼" Matrikx Pb1® 0.5 micron Carbon Block for the Ultimate protection or the 20" X 4-¼" Matrikx CTO/2®, 5 micron for Chlorine, Taste and Odor removal.
